GDML Interface

GDML Options

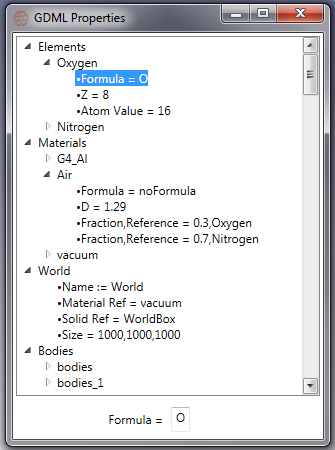

The GDML menu is solely used for exporting to the GDML file format for use in scientific applications. In the menu, basic elements and materials can be defined. New items can be added by clicking on the header of the appropriate item and right clicking the item and then selecting the desired item to add together with its value.

Items are modified by clicking on the item and modifying the text box at the bottom.

In some cases, the item needs to be collapsed and then expanded again to show the change.

The data is specific to the GDML format and as such the output should be reviewed for issues that might arise when data is entered or matched to an incorrect format.
