Component Tree

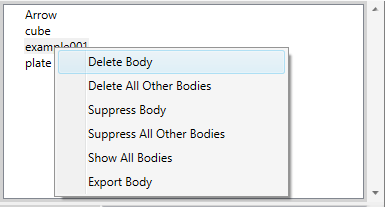

The Component Tree window shows the names of any currently loaded bodies. If multiple bodies are found in a single file, they are renamed with "_1", "_2", etc. If a design license is available, individual bodies may be removed by either selecting the body in the viewer or by selecting the appropriate item in the tree and then right clicking which brings up the dialog box shown above with the following items:

- Delete Body: removes the selected item from the set.
- Delete All Other Bodies: Removes all but the selected Body permanently from the set.
- Suppress Body: Hides the selected Body from the view but does not delete it. Body is also not available for export if suppressed.
- Suppress All Other Bodies: Suppresses all but the selected item.
- Show All Bodies: Changes all the suppressed bodies back.
- Export Body: Exports only the selected body but doesn't make any other changes.
